Wang algebra - directed graph

user provides directed graph

# Construct Wang ring S with indeterminants corresponding to edges of G
way = 2
if way == 1:
    R=PolynomialRing(GF(2),names=['a','b','c','d','e','f','A','B','C','D','E','F'],order='invlex')
    R.inject_variables()
    dG = {0: {1:a, 2:c, 4:f}, 1: {0:A, 2:b}, 2: {0:C, 1:B, 3:d}, 3: {2:D, 4:e}, 4: {3:E, 0:F}} # House graph
    G = DiGraph(dG,weighted=True)
else: # way 2
    #G = graphs.HouseGraph()
    #G = graphs.PetersenGraph()
    G = graphs.CompleteGraph(5)
    G = G.to_directed()
    edge_list_forward = []
    edge_list_reverse = []
    for edge in G.edges(sort=True):
        if edge[0]<edge[1]:
            edge_list_forward.append('e%s%s'%(edge[0],edge[1]))
            edge_list_reverse.append('e%s%s'%(edge[1],edge[0]))
    #print(edge_list_forward)
    #print(edge_list_reverse)
    R = PolynomialRing(GF(2), edge_list_forward + edge_list_reverse) # over F2
    R.inject_variables()
    for edge in G.edges(sort=True):
        G.set_edge_label(edge[0],edge[1],R('e%s%s'%(edge[0],edge[1])))

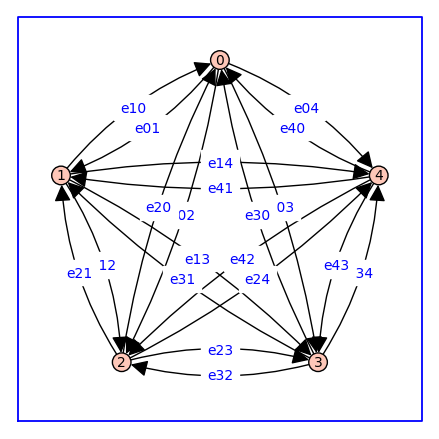

G.show(edge_labels=True,figsize=6,graph_border=True)

Defining e01, e02, e03, e04, e12, e13, e14, e23, e24, e34, e10, e20, e30, e40, e21, e31, e41, e32, e42, e43

code should be autonomous from here

def shorten(t,max=20,prefix=4,suffix=4):
    if len(t.monomials())<=max:
        return str(t)
    else:
        return str(sum(t.monomials()[:prefix])) + '+ ... +' + str(sum(t.monomials()[-suffix:]))

# Construct Wang ring S with indeterminants corresponding to edges of G
ne2 = G.size()/2
I = R.ideal([ R.gen(i)*R.gen(i+ne2) for i in range(ne2) ])
S = R.quotient(I,names=list(R.gens()))
S.inject_variables(verbose=0)
print('S is', S)

S is Quotient of Multivariate Polynomial Ring in e01, e02, e03, e04, e12, e13, e14, e23, e24, e34, e10, e20, e30, e40, e21, e31, e41, e32, e42, e43 over Finite Field of size 2 by the ideal (e01*e10, e02*e20, e03*e30, e04*e40, e12*e21, e13*e31, e14*e41, e23*e32, e24*e42, e34*e43)

# Construct polynomial corresonding to edges adjacent to each vertex
h=[]
for v in G.vertices(sort=True):
    h0 = S(0)
    for u in G.neighbors(v):
        h0 += G.edge_label(v,u)
    h.append(h0)
    print(v,':',h0)

0 : e01 + e02 + e03 + e04
1 : e12 + e13 + e14 + e10
2 : e23 + e24 + e20 + e21
3 : e34 + e30 + e31 + e32
4 : e40 + e41 + e42 + e43

# Calculate products of these polynomials in Wang ring S
hprod = [1]
for v in range(G.order()):
    hprod.append(hprod[-1]*h[v])
    print(v,':',shorten(hprod[-1],10,2,2))

0 : e01 + e02 + e03 + e04
1 : e01*e12 + e02*e12+ ... +e03*e10 + e04*e10
2 : e01*e12*e23 + e02*e12*e23+ ... +e03*e10*e21 + e04*e10*e21
3 : e01*e12*e23*e34 + e02*e12*e23*e34+ ... +e03*e10*e21*e32 + e04*e10*e21*e32
4 : e01*e12*e23*e34*e40 + e02*e12*e23*e34*e40+ ... +e03*e10*e21*e32*e43 + e04*e10*e21*e32*e43

t = hprod[-2]
print('tree polynomial of G has', len(t.monomials()), 'terms (Note: these include cycles not just trees!)\n')
print(shorten(t,20,4,4))

tree polynomial of G has 163 terms (Note: these include cycles not just trees!)

e01*e12*e23*e34 + e02*e12*e23*e34 + e03*e12*e23*e34 + e04*e12*e23*e34+ ... +e04*e14*e21*e32 + e02*e10*e21*e32 + e03*e10*e21*e32 + e04*e10*e21*e32

G0 = copy(G)
G0.weighted(False)
G0.spanning_trees_count() == len(t.monomials())

False

G0.spanning_trees_count()

125
