Reduced Power Graph#
This is a toolbox of functions to help with understanding reduced power graphs.
Function definitions#
def transition_and_context(f,t):
# f=from tuple, t=to tuple
if len(f)!=len(t):
raise ValueError('Tuples must be the same size.')
f=sorted(list(f));
t=sorted(list(t));
def remove_common_item():
for tt in t:
for ff in f:
if ff==tt:
f.remove(ff)
t.remove(ff)
return ff
return []
context=[];
while 1:
c=remove_common_item()
if c==[]:
return f[0],t[0],context
else:
context.append(c)
end
def combinatorial_coefficient(f,t):
# f=from tuple, t=to tuple
ff,tt,context=transition_and_context(f,t)
coeff=1
for c in context:
if c==ff:
coeff=coeff+1;
return coeff
def Cartesian_power(G, k, edge_labels='cannonical'):
# Make Cartesian power G^k (unreduced)
Gk=G
for i in range(k-1):
Gk = Gk.cartesian_product(G)
# Make each vertex a tuple
vflat=list(range(Gk.order()));
for i in range(Gk.order()):
v=Gk.vertices()[i]
#print(i,v,flatten(v))
vflat[i]=tuple(flatten(v))
Gk.relabel(vflat)
if edge_labels=='cannonical':
Gk = add_edge_labels(Gk,edge_labels='cannonical')
return Gk
def reduced_Cartesian_power(G, k, edge_labels='cannonical',prefix='',independent=false):
Gk = Cartesian_power(G, k, edge_labels)
for v in Gk.vertices():
for u in Gk.vertices():
sv=tuple(sorted(v))
su=tuple(sorted(u))
if v!=u and sv==su and v<u and Gk.has_vertex(v) and Gk.has_vertex(u):
Gk.merge_vertices([v,u])
if edge_labels=='induced':
for e in Gk.edges():
fr,to,context=transition_and_context(e[0],e[1])
if prefix=='':
Gk.set_edge_label(e[0],e[1],'(%s,%s)%s' %(fr,to,context))
else:
if independent:
Gk.set_edge_label(e[0],e[1],prefix+'%s%s' %(fr,to))
else:
ctxt=''
for k in context:
if G.order() <= 9:
ctxt=ctxt+str(k)
else:
ctxt=ctxt+'_'+str(k)
Gk.set_edge_label(e[0],e[1],prefix+'%s%s_%s' %(fr,to,ctxt))
return Gk
def add_edge_labels(G,edge_labels='default',prefix=''):
if edge_labels=='default':
if G.to_simple().size() <= 26:
edge_labels=['a','b','c','d','e','f','g','h','i','j','k','l','m','n','o','p','q','r','s','t','u','v','w','x','y','z']
else:
edge_labels=['e%s' %(i) for i in range(G.to_simple().size())]
remaining_edge_labels=edge_labels
for e in G.edges():
if edge_labels=='cannonical':
if G.order() <= 9:
if prefix=='':
G.set_edge_label(e[0],e[1],'(%s,%s)' %(e[0],e[1]))
else:
G.set_edge_label(e[0],e[1],'%s%s%s' %(prefix,e[0],e[1]))
else:
if prefix=='':
G.set_edge_label(e[0],e[1],'(%s,%s)' %(e[0],e[1]))
else:
G.set_edge_label(e[0],e[1],'%s_%s_%s' %(prefix,e[0],e[1]))
else:
if G.is_directed():
if e[0]<e[1]:
edge_label=remaining_edge_labels.pop(0)
G.set_edge_label(e[0],e[1],edge_label)
G.set_edge_label(e[1],e[0],edge_label+'bar')
else:
edge_label=remaining_edge_labels.pop(0)
G.set_edge_label(e[0],e[1],edge_label)
return G
def combinatorial_laplacian(G,combinatorial_coefficients=false):
v=G.vertices()
A = matrix(SR, G.order(), lambda i,j: G.edge_label(v[i],v[j]) if G.has_edge(v[i],v[j]) else 0)
if combinatorial_coefficients:
for i in range(G.order()):
for j in range(G.order()):
if G.has_edge(v[i],v[j]):
A[i,j]=combinatorial_coefficient(v[i],v[j])*A[i,j]
D = diagonal_matrix(sum(A.transpose()))
L=D-A
return L
def tree_polynomial(G,combinatorial_coefficients=false):
L=combinatorial_laplacian(G,combinatorial_coefficients)
T=det(L[1:,1:]).expand()
return T
def symmetric_directed(G):
D = G.to_directed()
for e in D.edges():
if e[2]!=None and e[0]>e[1]:
D.set_edge_label(e[0],e[1],e[2]+'bar')
return D
Adding edge labels to graphs, combinatorial Laplacian matrix, and the tree polynomial#
G = graphs.HouseGraph()
G = add_edge_labels(G)
G.show(figsize=3,edge_labels=true)
G = add_edge_labels(G,edge_labels='cannonical')
G.show(figsize=3,edge_labels=true)
G = add_edge_labels(G,edge_labels=['floor','left wall','right wall','ceiling','left roof','right roof'])
G.show(figsize=3,edge_labels=true)
G = graphs.CycleGraph(3)
G.add_vertex()
G.add_edge(2,3)
G = add_edge_labels(G)
G.show(figsize=3,edge_labels=true,layout='spring')
L=combinatorial_laplacian(G); print(L)
print()
T=tree_polynomial(G); print(T)
[ a + b -a -b 0]
[ -a a + c -c 0]
[ -b -c b + c + d -d]
[ 0 0 -d d]
a*b*d + a*c*d + b*c*d
D = symmetric_directed(G)

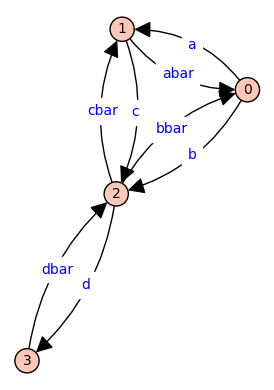

D.show(edge_labels=true,layout='spring')
print(combinatorial_laplacian(D))
print()
print(tree_polynomial(D))
[ a + b -a -b 0]
[ -abar abar + c -c 0]
[ -bbar -cbar bbar + cbar + d -d]
[ 0 0 -dbar dbar]
abar*bbar*dbar + bbar*c*dbar + abar*cbar*dbar
G=graphs.WheelGraph(4)
D = symmetric_directed(G)
D = add_edge_labels(D,edge_labels='cannonical',prefix='e')

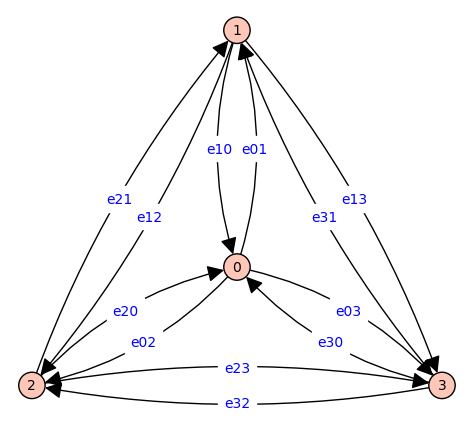

D.show(figsize=6,edge_labels=true)
print(tree_polynomial(D))
e10*e20*e30 + e12*e20*e30 + e13*e20*e30 + e10*e21*e30 + e13*e21*e30 + e10*e23*e30 + e12*e23*e30 + e13*e23*e30 + e10*e20*e31 + e12*e20*e31 + e10*e21*e31 + e10*e23*e31 + e10*e20*e32 + e12*e20*e32 + e13*e20*e32 + e10*e21*e32
D = symmetric_directed(graphs.PathGraph(5))
D = add_edge_labels(D)
D.show(figsize=8,edge_labels=true)
Constructing reduced graph powers, transitions and contexts as edge labels, and tree polynomial factoring#
Gk=reduced_Cartesian_power(graphs.CycleGraph(4),2,edge_labels='cannonical')

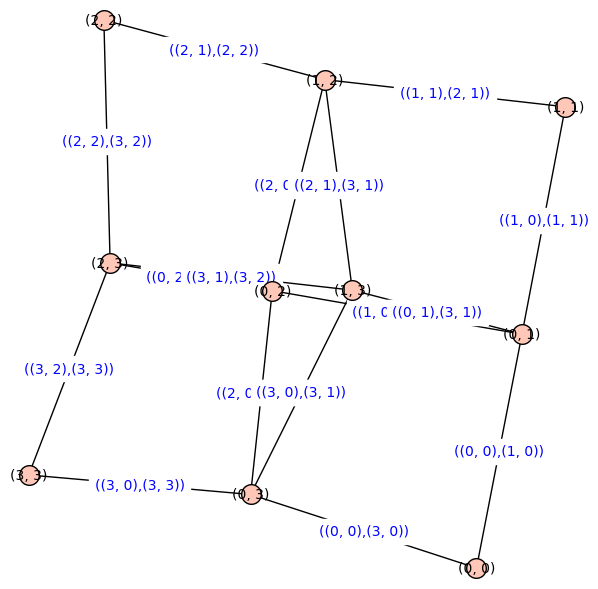

Gk.show(figsize=8,edge_labels=true)
Gk=reduced_Cartesian_power(graphs.PathGraph(4),3,edge_labels='induced',prefix='a')

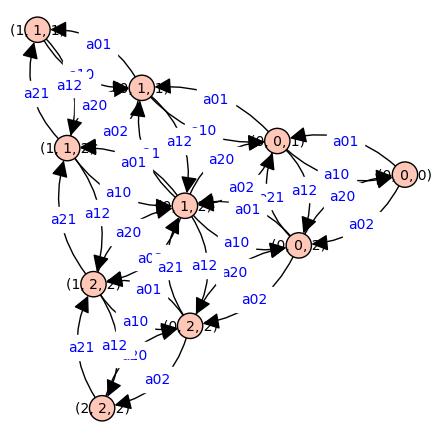

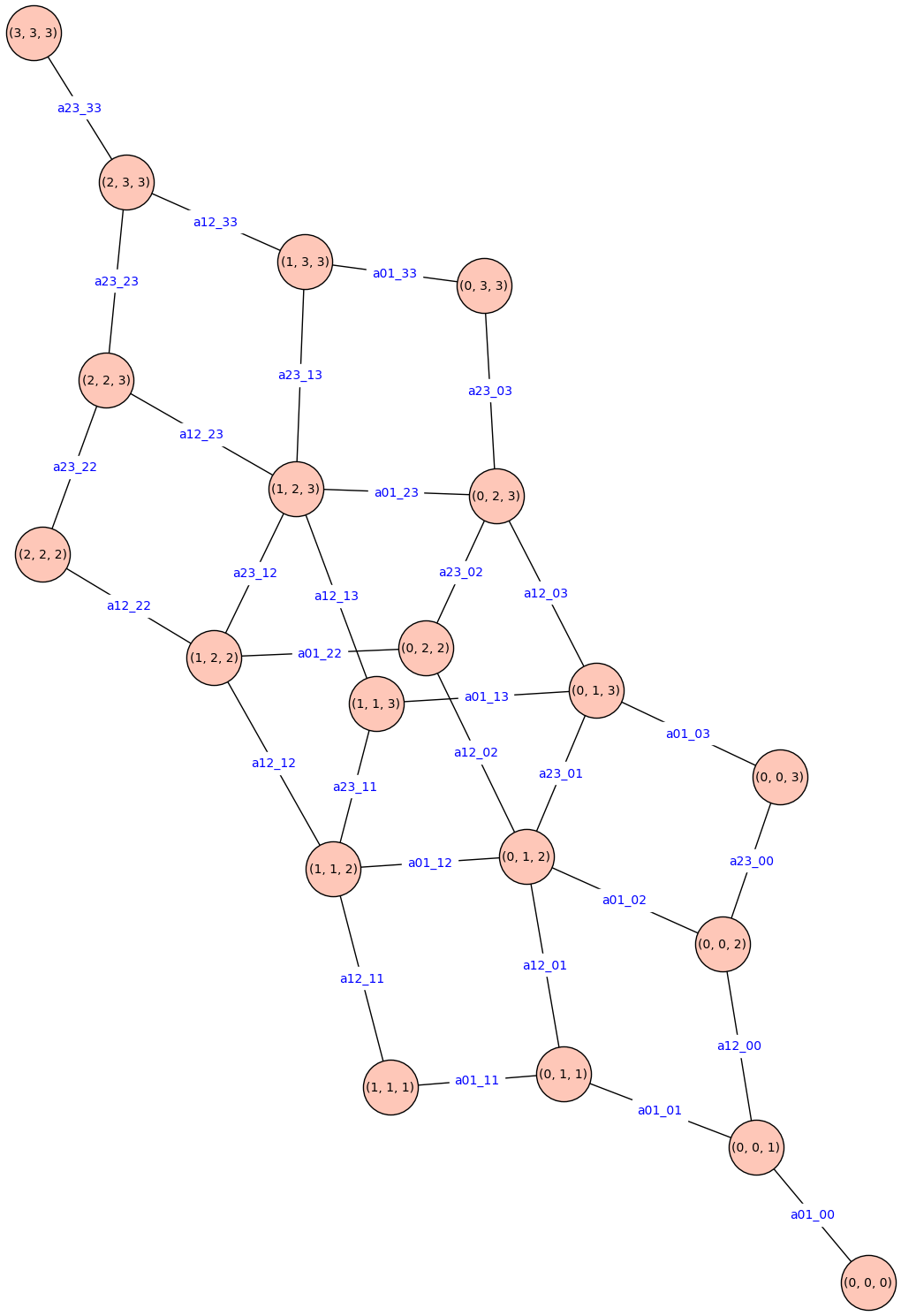

Gk.show(figsize=20,edge_labels=true,vertex_size=2000)
G=graphs.CycleGraph(3)

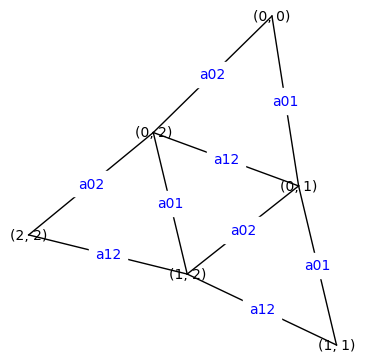

Gk=reduced_Cartesian_power(G,2,edge_labels='induced',prefix='a',independent=true)
Gk.show(figsize=5,edge_labels=true,vertex_size=0)
print(combinatorial_laplacian(Gk))
print()
Tk=tree_polynomial(Gk); print(Tk)
Tk.factor()
[ a01 + a02 -a01 -a02 0 0 0]
[ -a01 2*a01 + a02 + a12 -a12 -a01 -a02 0]
[ -a02 -a12 a01 + 2*a02 + a12 0 -a01 -a02]
[ 0 -a01 0 a01 + a12 -a12 0]
[ 0 -a02 -a01 -a12 a01 + a02 + 2*a12 -a12]
[ 0 0 -a02 0 -a12 a02 + a12]
2*a01^3*a02^2 + 2*a01^2*a02^3 + 4*a01^3*a02*a12 + 10*a01^2*a02^2*a12 + 4*a01*a02^3*a12 + 2*a01^3*a12^2 + 10*a01^2*a02*a12^2 + 10*a01*a02^2*a12^2 + 2*a02^3*a12^2 + 2*a01^2*a12^3 + 4*a01*a02*a12^3 + 2*a02^2*a12^3
2*(a01*a02 + a01*a12 + a02*a12)^2*(a01 + a02 + a12)
D = symmetric_directed(graphs.CycleGraph(3))
Dk=reduced_Cartesian_power(D,2,edge_labels='induced',prefix='a',independent=true)

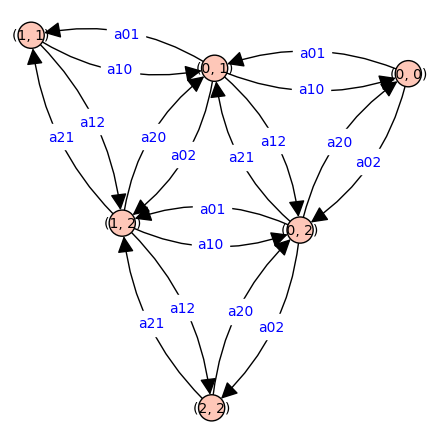

Dk.show(figsize=6,edge_labels=true)
print(combinatorial_laplacian(Dk,combinatorial_coefficients=true))
Tk=tree_polynomial(Dk,combinatorial_coefficients=true)
Tk.factor()
[ 2*a01 + 2*a02 -2*a01 -2*a02 0 0 0]
[ -a10 a01 + a02 + a10 + a12 -a12 -a01 -a02 0]
[ -a20 -a21 a01 + a02 + a20 + a21 0 -a01 -a02]
[ 0 -2*a10 0 2*a10 + 2*a12 -2*a12 0]
[ 0 -a20 -a10 -a21 a10 + a12 + a20 + a21 -a12]
[ 0 0 -2*a20 0 -2*a21 2*a20 + 2*a21]
4*(a10*a20 + a12*a20 + a10*a21)^2*(a01 + a02 + a10 + a12 + a20 + a21)
Gk=reduced_Cartesian_power(graphs.CubeGraph(4),2)
print('There are',Gk.spanning_trees_count(),'spanning trees. Here is one:')
TGk=Gk.random_spanning_tree()
for e in Gk.edges(): Gk.set_edge_label(e[0], e[1], 0)
for e in TGk: Gk.set_edge_label(e[0], e[1], 1)

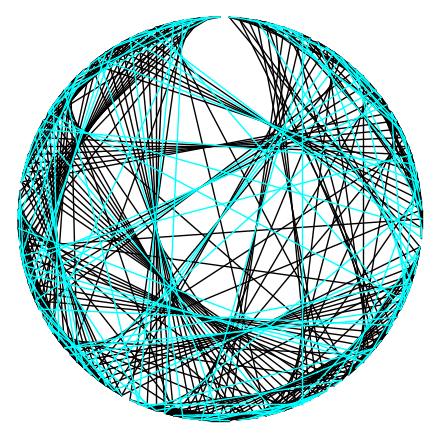

Gk.show(vertex_labels=false,vertex_size=0,figsize=6,edge_colors=Gk._color_by_label({0:'black',1:'cyan'}),layout='circular')
There are 1187343891269694642309198417406636743388000595418407837505224529723117873425106862080000000000000000000000000000 spanning trees. Here is one:
D = symmetric_directed(graphs.CycleGraph(3))
Dk=reduced_Cartesian_power(D,3,edge_labels='induced',prefix='a',independent=true)
Dk.show(figsize=6,edge_labels=true)
Tk=tree_polynomial(Dk,combinatorial_coefficients=true)
Tk.factor()
36*(2*a01^2 + 4*a01*a02 + 2*a02^2 + 4*a01*a10 + 5*a02*a10 + 2*a10^2 + 5*a01*a12 + 5*a02*a12 + 4*a10*a12 + 2*a12^2 + 5*a01*a20 + 4*a02*a20 + 5*a10*a20 + 5*a12*a20 + 2*a20^2 + 5*a01*a21 + 5*a02*a21 + 5*a10*a21 + 4*a12*a21 + 4*a20*a21 + 2*a21^2)*(a10*a20 + a12*a20 + a10*a21)^3*(a01 + a02 + a10 + a12 + a20 + a21)
G = graphs.CycleGraph(3)
G.add_vertex()
G.add_edge(2,3)
D = symmetric_directed(G)

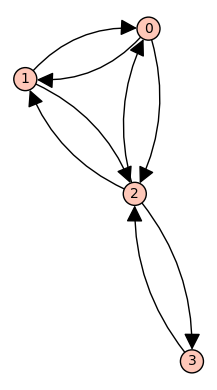

D.show(edge_labels=true,layout='spring')
Dk=reduced_Cartesian_power(D,2,edge_labels='induced',prefix='a',independent=true)

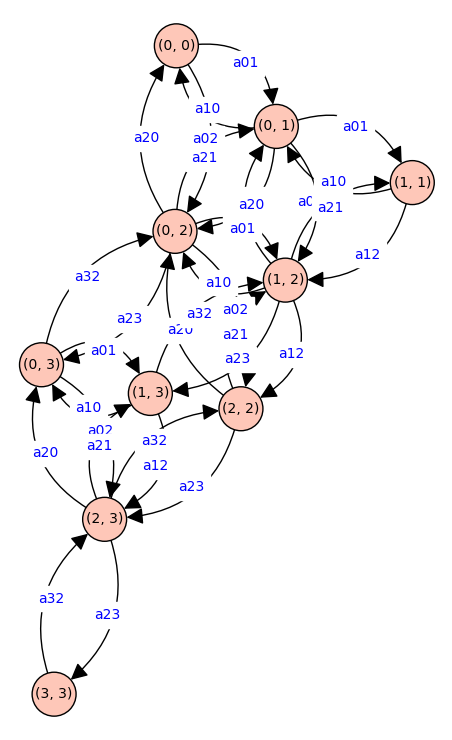

Dk.show(figsize=10,edge_labels=true)
Tk=tree_polynomial(Dk,combinatorial_coefficients=true)
Tk.factor()
8*(a01*a02*a10 + a02^2*a10 + a02*a10^2 + a01^2*a12 + 2*a01*a02*a12 + a02^2*a12 + a01*a10*a12 + 2*a02*a10*a12 + a01*a12^2 + a02*a12^2 + a01^2*a20 + a01*a02*a20 + 2*a01*a10*a20 + 2*a02*a10*a20 + a10^2*a20 + 3*a01*a12*a20 + 2*a02*a12*a20 + 2*a10*a12*a20 + a12^2*a20 + a01*a20^2 + a10*a20^2 + a12*a20^2 + a01^2*a21 + 2*a01*a02*a21 + a02^2*a21 + 2*a01*a10*a21 + 3*a02*a10*a21 + a10^2*a21 + 2*a01*a12*a21 + 2*a02*a12*a21 + a10*a12*a21 + 2*a01*a20*a21 + a02*a20*a21 + 2*a10*a20*a21 + a12*a20*a21 + a01*a21^2 + a02*a21^2 + a10*a21^2 + a01^2*a23 + 2*a01*a02*a23 + a02^2*a23 + 2*a01*a10*a23 + 2*a02*a10*a23 + a10^2*a23 + 2*a01*a12*a23 + 2*a02*a12*a23 + 2*a10*a12*a23 + a12^2*a23 + 2*a01*a20*a23 + a02*a20*a23 + 2*a10*a20*a23 + 2*a12*a20*a23 + 2*a01*a21*a23 + 2*a02*a21*a23 + 2*a10*a21*a23 + a12*a21*a23 + a01*a23^2 + a02*a23^2 + a10*a23^2 + a12*a23^2 + a01^2*a32 + 2*a01*a02*a32 + a02^2*a32 + 2*a01*a10*a32 + 2*a02*a10*a32 + a10^2*a32 + 2*a01*a12*a32 + 2*a02*a12*a32 + 2*a10*a12*a32 + a12^2*a32 + 2*a01*a20*a32 + 2*a02*a20*a32 + 2*a10*a20*a32 + 2*a12*a20*a32 + a20^2*a32 + 2*a01*a21*a32 + 2*a02*a21*a32 + 2*a10*a21*a32 + 2*a12*a21*a32 + 2*a20*a21*a32 + a21^2*a32 + 2*a01*a23*a32 + 2*a02*a23*a32 + 2*a10*a23*a32 + 2*a12*a23*a32 + a20*a23*a32 + a21*a23*a32 + a01*a32^2 + a02*a32^2 + a10*a32^2 + a12*a32^2 + a20*a32^2 + a21*a32^2)*(a10*a20 + a12*a20 + a10*a21)^2*a32^2
First try at factoring tree polynomials of reduced graph products#
$$ C_3^{(2)}: \quad 2(ab + ac + bc)^2\ (a + b + c) $$ $$ C_3^{(3)}: \quad 2(ab + ac + bc)^3\ (3a^3 + 11a^2b + 11ab^2 + 3b^3 + 11a^2c + 23abc + 11b^2c + 11ac^2 + 11bc^2 + 3c^3) $$ $$ C_{3+isthmus}^{(3)}: \quad 2(ab + ac + bc)^2d^2\ (3a^2b + 3ab^2 + 3a^2c + 9abc + 3b^2c + 3ac^2 + 3bc^2 + 4a^2d + 8abd + 3b^2d + 8acd + 7bcd + 3c^2d + 4ad^2 + 3bd^2 + 3cd^2) $$ $$ C_4^{(2)}: 2(abc + abd + acd + bcd)^2\ (3a^2b + 3ab^2 + 4a^2c + 8abc + 3b^2c + 4ac^2 + 3bc^2 + 3a^2d + 8abd + 4b^2d + 8acd + 8bcd + 3c^2d + 3ad^2 + 4bd^2 + 3cd^2) $$ $$C_{4+diag}^{(2)}+: 2(abc + abd + acd + bcd + ace + bce + ade + bde)^2\ (3a^2b + 3ab^2 + 4a^2c + 8abc + 3b^2c + 4ac^2 + 3bc^2 + 3a^2d + 8abd + 4b^2d + 8acd + 8bcd + 3c^2d + 3ad^2 + 4bd^2 + \ 3cd^2 + 3a^2e + 9abe + 3b^2e + 8ace + 7bce + 3c^2e + 7ade + 8bde + 9cde + 3d^2e + 3ae^2 + 3be^2 + 3ce^2 + 3de^2) $$
This was not automatic#
G=graphs.CycleGraph(3)
G.add_edge(2,3)
show(G)
var('a','b','c','d','e')
for k in range(2,3):
Gk=reduced_Cartesian_power(G,k,edge_labels='induced',prefix='a',independent=true)
Tk=tree_polynomial(Gk);
Tk=Tk.subs(a01=a,a12=b,a23=d,a02=c)
print(Tk.factor())
2*(3*a^2*b + 3*a*b^2 + 3*a^2*c + 9*a*b*c + 3*b^2*c + 3*a*c^2 + 3*b*c^2 + 4*a^2*d + 8*a*b*d + 3*b^2*d + 8*a*c*d + 7*b*c*d + 3*c^2*d + 4*a*d^2 + 3*b*d^2 + 3*c*d^2)*(a*b + a*c + b*c)^2*d^2
